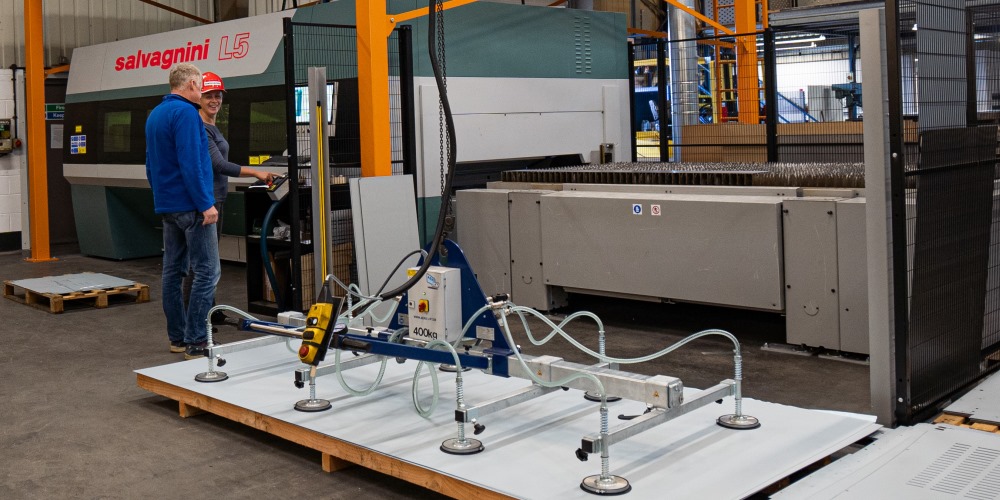

Altex Engineering, a leading precision subcontractor based in Calne, Wiltshire, has invested in a new Salvagnini L5 CNC fibre laser cutter to increase capacity and meet growing demand. The 6 kW machine is notable for its 50 μm beam which, in combination with its proprietary Air Pressure Multiplier (APM), means mild steel, aluminium and stainless steel up to 10 mm thick can be cut using nothing more than a standard compressed air supply. Established over 30 years ago by current owner John Jackett, Altex Engineering has grown into a 30-employee business with UK-wide customers in sectors such as as medical, telecommunications, defence and office furniture. The company, which undertakes fabrication, machining and finishing operations, extended its Wiltshire premises in 2014. Altex is committed to an ongoing programme of investment in plant, software and processes, key among which is laser cutting. “Due to rising orders, we recently ran out of capacity on our existing Salvagnini L1Xe laser cutter,” explains John Jackett. “We therefore took the decision to invest in another machine, the L5 and take advantage of the progression in technology. The two machines are now running side-by-side.” He recalls the time 10 years ago when he invested in his first Salvagnini, the aforementioned L1Xe. When it was installed in 2010, it was thought to be the first fibre laser cutter in the UK from any manufacturer. “So many people were sceptical,” he states. “CO2 laser cutting technology was dominant and hardly anyone had heard of fibre lasers, it took a real leap of faith. I even visited Salvagnini’s headquarters in Italy to see a demonstration. Although everyone thought I was crazy to consider a fibre laser, we went ahead and bought the L1Xe. Over the years it’s been a fantastic performer and is still going strong today. We simply ran out of capacity.” The arrival of significant new contracts from the telecommunications sector proved to be the tipping point. It was clear that alongside extra capacity, Altex would need to seek out a new machine with even greater speed and efficiency. “I looked at several machines but the L5 was best,” states Mr Jackett. “Speed was certainly a factor.”

Two carbon arms are driven by a pair of rotary motors that move the laser head dynamically in the XY plane in small steps, reducing the movements of the whole carriage and contributing to ultra fast cutting speed.

The L5’s highly dynamic laser cutting system has no optical path and is equipped with a patented compass that comprises two carbon arms. These arms are driven by a pair of rotary motors that move the laser head dynamically in the XY plane in small steps, reducing the movements of the whole carriage. A specially developed algorithm in the control provides the greatest acceleration to the axis with least inertia, thus ensuring highly dynamic performance of both the cutting movement and rapid traverse motion. In combination with the new 6kW high power density source, the L5 is notably faster than previous-generation models. For instance, in tests against the company’s L3 with a conventional 6kW source, cutting times were 30-40% quicker on materials up to 3mm thick, and 10 percent quicker on 4 mm thick material. From 6-10 mm, the performance was the same. These elevated performance levels also help from a quality perspective. The quality gap that historically differentiated between cutting with nitrogen and air has now narrowed to negligible levels. Higher power density and ultra-fast cutting speed help to reduce the opportunity for oxidation at the cutting edge, vastly improving its quality. A further influencer for Altex in favour of the L5 was low running costs. Installation of the Salvagnini L5 took place in July 2020. Although the machine cuts material up to 10 mm thick, on a day-to-day basis the L5 at Altex processes parts made from zintec up to 3 mm thick, as well as various gauges of stainless steel and aluminium. Batch sizes extend from 1-off up to 10,000. The L5 is currently running continuously over an 8-hour shift, with plans to extend its use to a second shift in the near future. “Our operators love it, not just because it’s such an exciting machine, but because it gets through work quicker, which makes them look good,” concludes John Jackett with a smile.
